时间序列分析作业 2

Problem 1

生成数据

model = ARMAProcess[{0.1, 0.12}, {-0.6, 0.7}, 1];
SeedRandom[42];
n = 1000;
data = RandomFunction[model, {1001, n + 1000}];

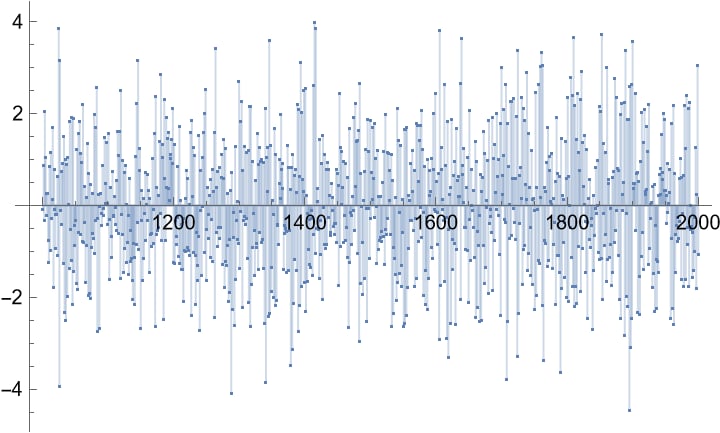

ListPlot[data, Filling -> Axis]

用不同阶数 ARMA 模型进行拟合并计算 AIC, BIC

results =
  Table[Module[{tsm},
    tsm = TimeSeriesModelFit[data, {"ARMA", {p, q}}]; {tsm["AIC"],
     tsm["BIC"]}], {p, 1, 10}, {q, 1, 10}];
aic = results[[All, All, 1]];
bic = results[[All, All, 2]];

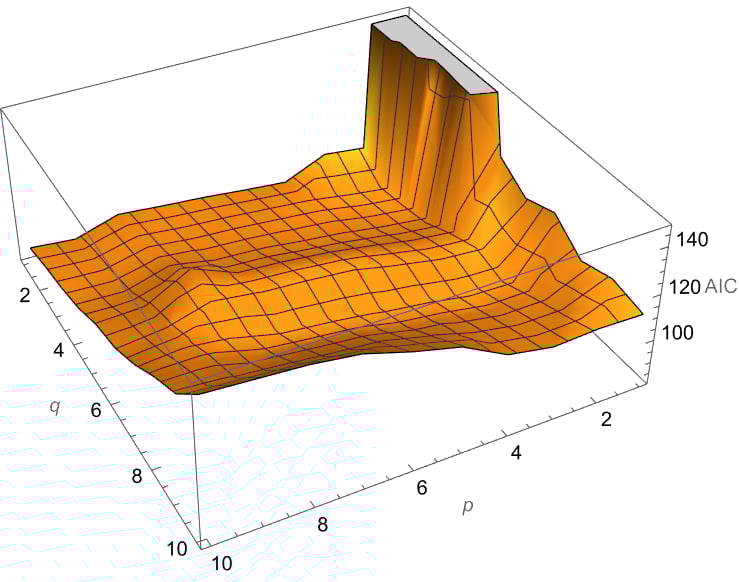

ListPlot3D[aic, AxesLabel -> {p, q, "AIC"}]

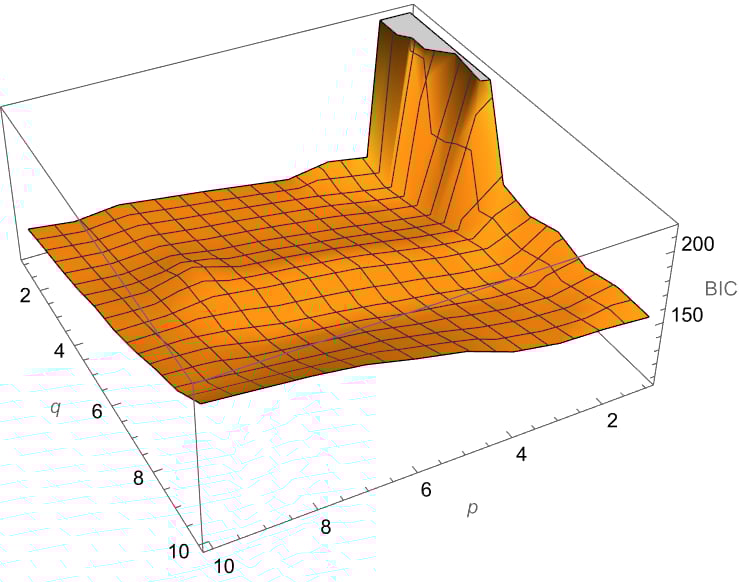

ListPlot3D[bic, AxesLabel -> {p, q, "BIC"}]

AIC

BIC

求最小阶数

1 2	Position[aic, Min[aic]] Position[bic, Min[bic]]

均为 ARMA(2,2) 模型最合适.

重复以上过程 100 次, 并求阶数平均值标准差

result100 = ParallelTable[Module[{data, results, aic, bic},
    data = RandomFunction[model, {1001, n + 1000}];
    results =
     Table[Module[{tsm},
       tsm = TimeSeriesModelFit[data, {"ARMA", {p, q}}]; {tsm["AIC"],
        tsm["BIC"]}], {p, 1, 10}, {q, 1, 10}];
    aic = results[[All, All, 1]];
    bic = results[[All, All, 2]];
    Flatten[{Position[aic, Min[aic]], Position[bic, Min[bic]]}]
    ], 100];
TableForm[
 Map[{N[Mean[#]], N[StandardDeviation[#]]} &, Transpose[result100]],
 TableHeadings -> {{"AIC p", "AIC q", "BIC p", "BIC q"}, {"Mean",
    "StdDev"}}]

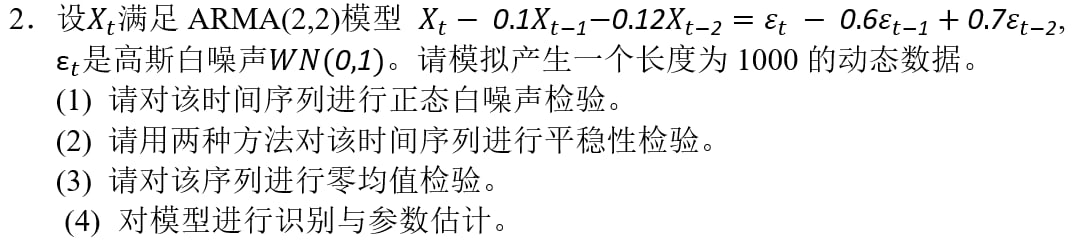

Problem 2

使用上一题的代码生成数据, 进行正态白噪声检验

1
2
3

datanormal = Normal[data][[1, All, 2]];
g3 = Sqrt[n/6] Skewness[datanormal]
g4 = Sqrt[n/24] Kurtosis[datanormal] - 3

得到 , 否定序列是正态白噪声的假设.

使用逆序检验法检验平稳性

m = 20;
xi = Mean[Partition[datanormal, m]];
k = Length[xi];
a = Sum[If[i < j && xi[[i]] < xi[[j]], 1, 0], {i, 1, k - 1}, {j,
    i + 1, k}];
z = (a - 1/4 k (k - 1))/Sqrt[(2 k^3 + 3 k^2 - 5 k)/72]

得到 , 在给定显著性水平时认为序列无明显的趋势.

使用游程检验法检验平稳性

mean = Mean[datanormal];
n1 = Count[datanormal, _?(# > mean &)];
n2 = Count[datanormal, _?(# < mean &)];
r = Length[Split[Map[# > mean &, datanormal]]];
er = N[(2 n1 n2)/(n1 + n2) + 1]
dr = N[(2 n1 n2 (2 n1 n2 - 1))/(n^2 (n - 1))]
z = (r - er)/Sqrt[dr]

计算得到 , 发现序列的游程过多了, 导致未通过游程检验方法

进行序列零均值检验. 取

\[Gamma] = CovarianceFunction[data, {n - 1}]
varx = Sum[\[Gamma][Abs[i]], {i, -100, 100}]/101;
mean
Sqrt[varx]

得到 , 则认为均值显著零

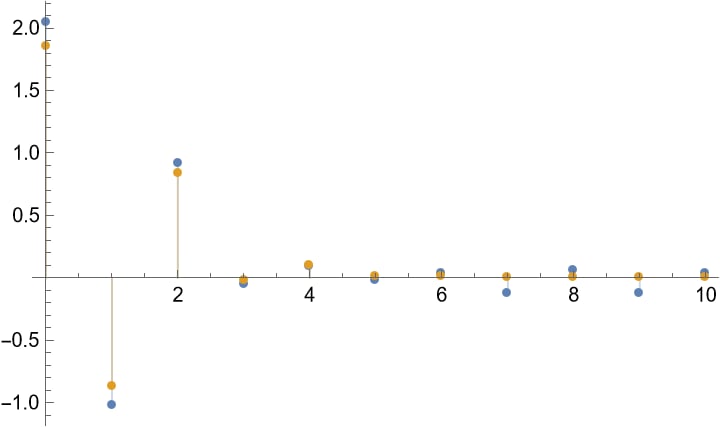

模型的识别与参数估计, 绘制自相关图

gamma = CovarianceFunction[data, {10}];
Normal[gamma]

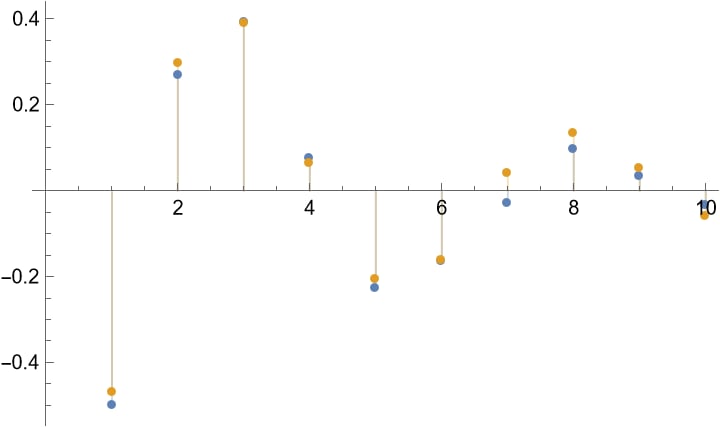

ListPlot[{gamma, CovarianceFunction[model, {10}]}, Filling -> Axis,
 PlotLegends -> {"模拟数据", "理论"}]

绘制偏相关图

phi = PartialCorrelationFunction[data, {10}];
Normal[phi]
ListPlot[{phi, PartialCorrelationFunction[model, {10}]},
 Filling -> Axis, PlotLegends -> {"模拟数据", "理论"}]

发现自相关函数在 2 步截尾, 偏相关函数拖尾, 有可能认为是模型, 但还是认为是 ARMA 模型, 然后按照第一题的方法来定阶比较稳妥.

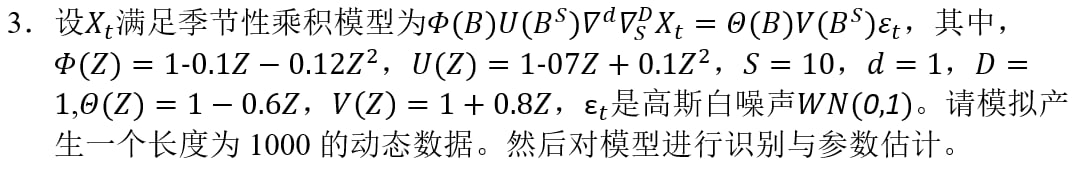

Problem 3

model = SARIMAProcess[{0.1, 0.12},
   1, {-0.6}, {10, {0.7, -0.1}, 1, {0.8}}, 1];
SeedRandom[42];
n = 1000;
data = RandomFunction[model, {1001, n + 1000}];

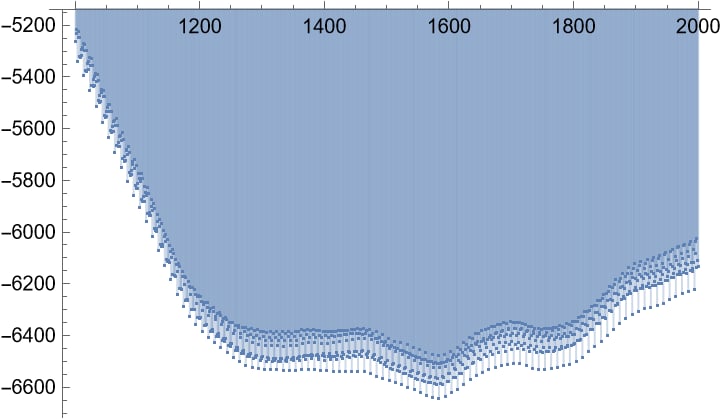

ListPlot[data, Filling -> Axis]

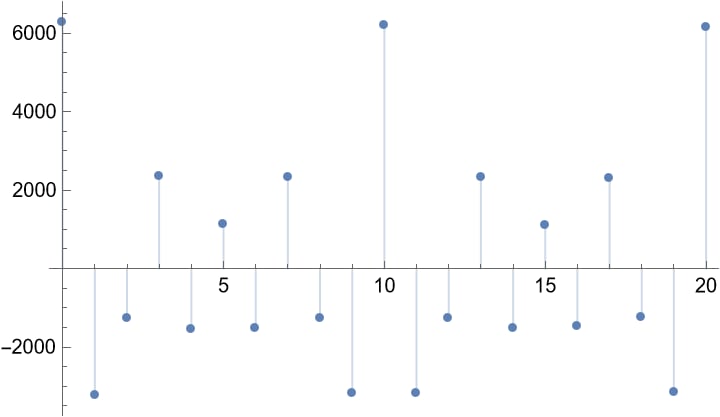

进行模型识别，绘制一阶差分的自相关图

1
2
3

gamma = CovarianceFunction[Differences[data], {20}];
Normal[gamma]
ListPlot[gamma, Filling -> Axis]

注意到数据有明显的季节性，且均值随时间明显地变化，则使用 SARIMA 模型是合适的，

使用 TimeSeriesModelFit 估计参数

1 2	tsm = TimeSeriesModelFit[data, {"SARIMA", {{2, 1, 1}, {2, 1, 1}, 10}}] tsm["ParameterTable"]

与理论模型差距明显.

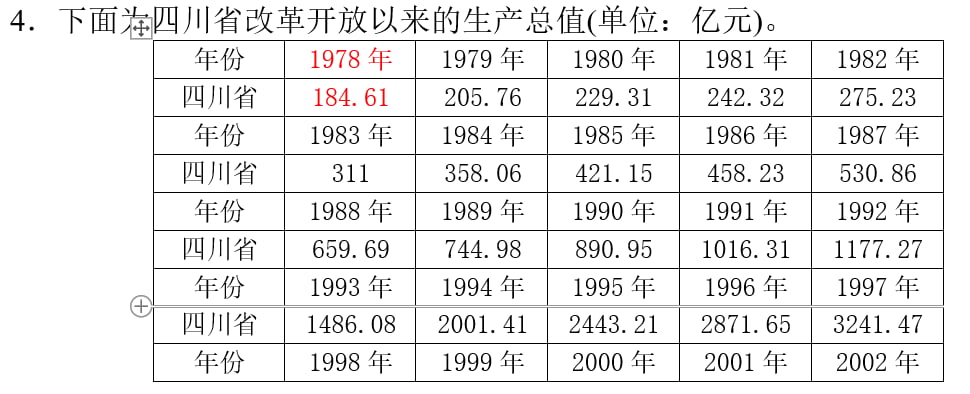

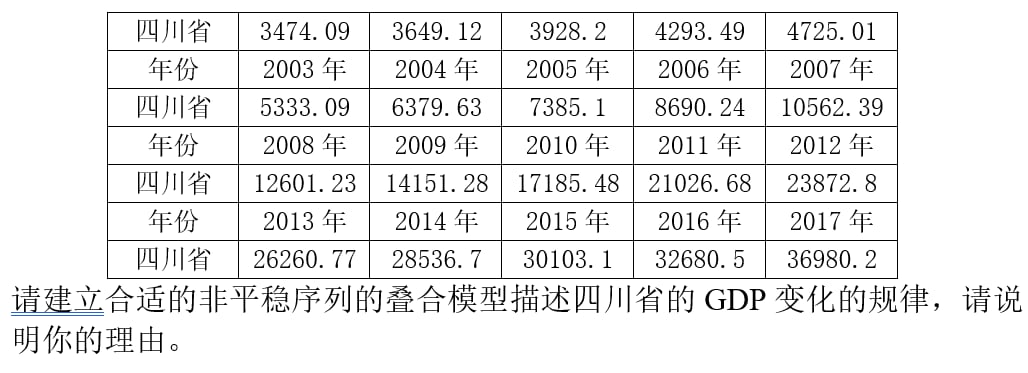

Problem 4

data = TimeSeries[{184.61, 205.76, 229.31, 242.32, 275.23, 311,
   358.06, 421.15, 458.23, 530.86, 659.69, 744.98, 890.95, 1016.31,
   1177.27, 1486.08, 2001.41, 2443.21, 2871.65, 3241.47, 3474.09,
   3649.12, 3928.2, 4293.49, 4725.01, 5333.09, 6379.63, 7385.1,
   8690.24, 10562.39, 12601.23, 14151.28, 17185.48, 21026.68, 23872.8,
    26260.77, 28536.7, 30103.1, 32680.5, 36980.2}, {1978}]

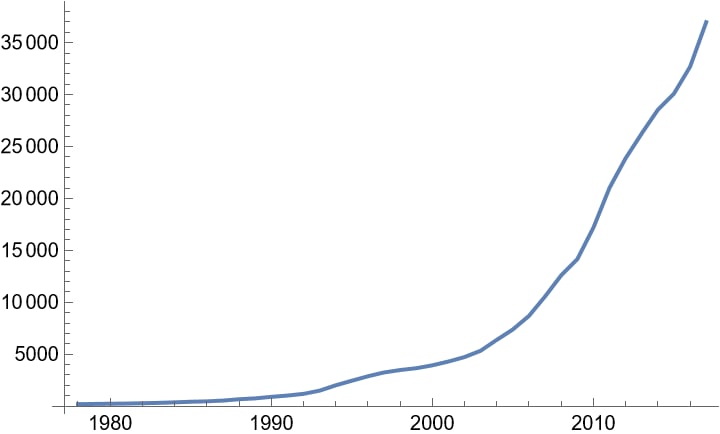

ListLinePlot[data]

从图像上认为数据存在类似于指数增长的确定性趋势，考虑

1	fit = FindFit[data, a + b E^(c (t - 1978)), {a, b, c}, t]

拟合得到

1	{a -> -688.723, b -> 382.643, c -> 0.118877}

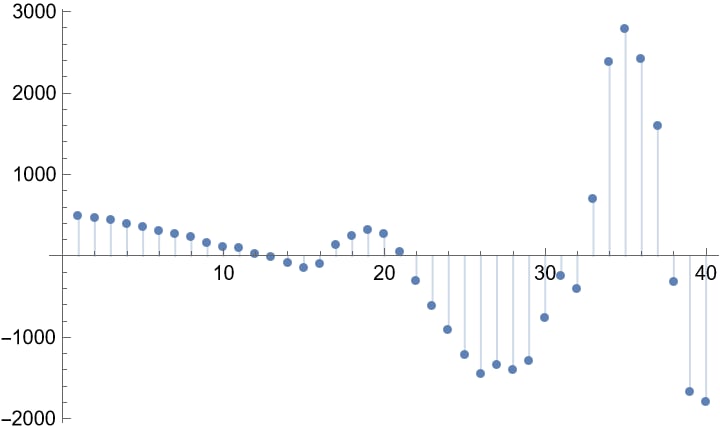

看看残差

1 2	res = data - Table[(a + b E^(c t)) /. fit, {t, Length[data]}]; ListPlot[res, Filling -> Axis]

并不算是平稳，但本来数据量就不多，将就吧

1 2	tsm = TimeSeriesModelFit[TimeSeries[res]] tsm["BestFit"]

Mathematica 建议使用 SARIMA 来建模残量序列，残量序列确实具有一定的季节性

1 2	SARIMAProcess[-4159.83, {2.75393, -5.90893}, 1, {-0.843746, \ -0.115202}, {12, {}, 3, {}}, 348735., {}]

但是由于数据量过少，难以估计许多参数. 使用更为简单的 ARMA 模型

1 2	tsm = TimeSeriesModelFit[TimeSeries[res], "ARMA"] tsm["BestFit"]

1 2	ARMAProcess[-4.20369*10^-14, {1.36553, -0.673662}, {0.414017}, \ 113312.]
